Technical parameters

Max. resolution (px×px)
DVI - 3840x1200 (2 x 1920x1200)
DVI - 5760x1080 (3 x 1920x1080)
VGA - 3840x1080 (2 x 1920x1080)
VGA - 4080x768 (3 x 1360x768)
Connectors
1 x DVI-I (Input, 24+5-pin D-Sub)
1 x USB-B
1 x VGA (Input, 15-pin D-Sub)
3 x DVI-I (Output, 24+5-pin D-Sub)
Width (mm)
140
Height (mm)
28
Depth (mm)
113
Net weight (kg)
0.28

Product description

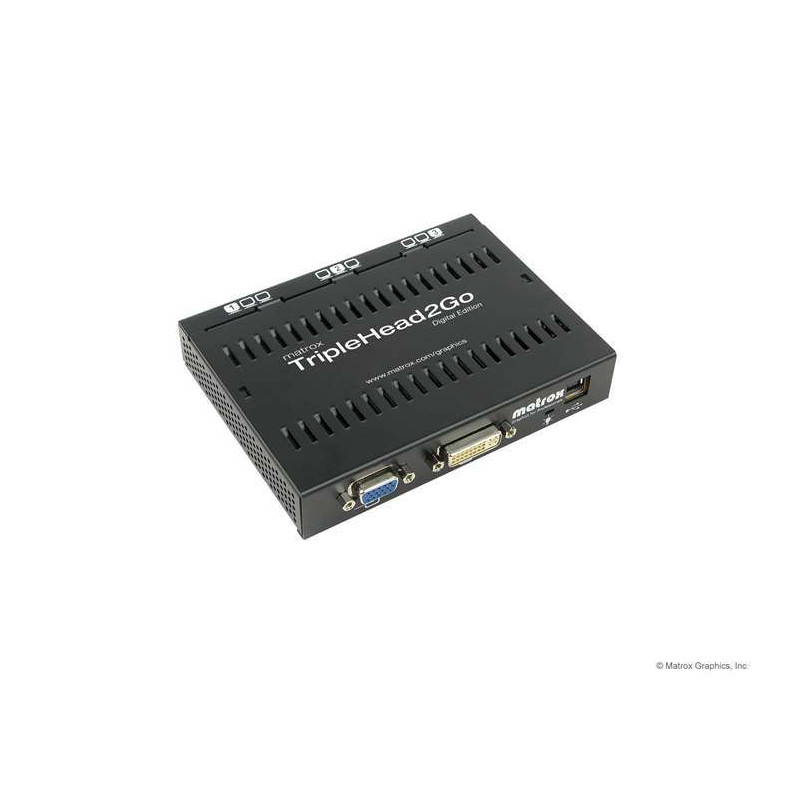

Matrox TripleHead2Go Digital is an external multi-screen adapter that allows you to connect three additional screens to your laptop or computer by splitting the video signal. The adapter offers a maximum resolution of 5760x1080 for three TV sets via DVI-I input and 4080x768 for three TV sets via VGA input.

The device is driven by a USB-B port, through which it connects to a computer. The user (except the DVI-I/VGA input) can use three DVI-I outputs that are used for a digital or analog connection.

The device is supported on Windows (from XP to 10), Mac OS X (from 10.6 to 10.11) and Linux. SQM Multimedia Support invites you to rent our multi-screen adapter!

Attachments

TripleHead2Go User guide

Download (6.19M)
