Technical parameters

Diagonal (in)
17
Panel
TN
Standard
SXGA
Resolution (px×px)
1280x1024
Screen aspect ratio
4:3
Max. brightness (cd/m²)
250
Viewing angles (h/v; °)
160/160
Connectors
1 x VGA (Input, 15-pin D-Sub)
Max. power consumption (W)
25
Height with stand (mm)
380.6
Depth with stand (mm)
136.9
Width without stand (mm)
374.5
Height without stand (mm)
307
Depth without stand (mm)
59
Net weight (kg)
3.04
Set contains
Power cord

Product description

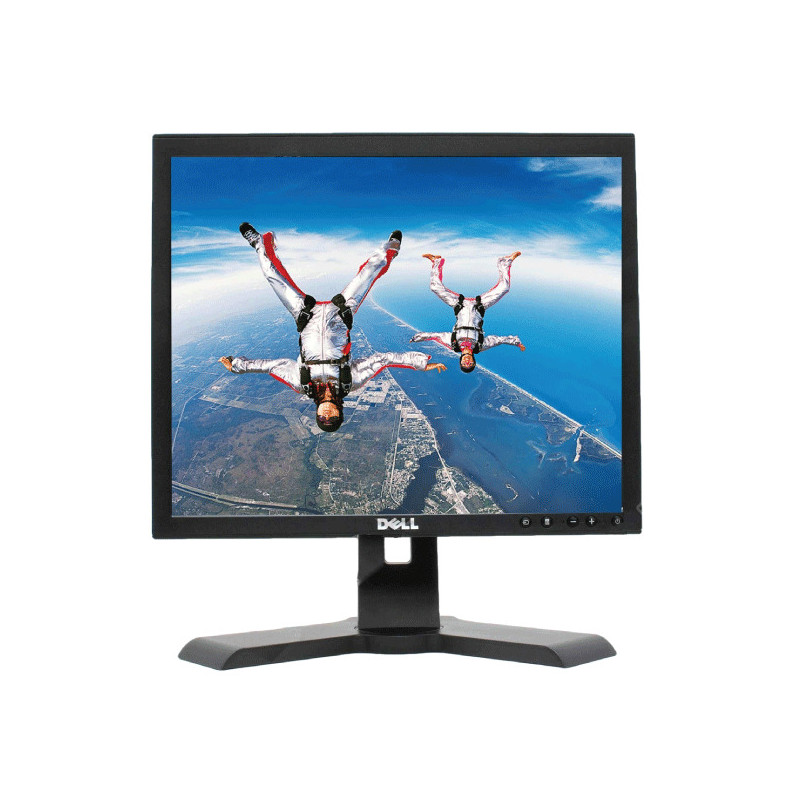

Dell E170SB is an LCD desktop monitor equipped with a TN (Twisted Nematic) panel. The 17-inch monitor supports 1280x1024 resolution in the SXGA standard and offers a wide horizontal and vertical field of view (160/160 degrees).

The E170SB is equipped with one VGA analog input (15-pin D-Sub connector), has an intuitive interface and is very flexible for tilt configuration (from -4 to 21 degrees).

The E170SB weighs approx. 3 kg, has mounts (100x100mm) in VESA standard and consumes only 19W of power on a standard use (with a maximum consumption of 25W). The device offers the Energy Saver function and is compliant to the Energy Star energy efficiency standards.

We encourage you to check the availability of a desktop monitor at SQM Rental House!

Attachments

Dell E170SB User guide

Download (1.26M)
