Technical parameters

Diagonal (in)
32
Panel
S-IPS
Touch points
6
Standard
Full HD
Resolution (px×px)
1920x1080
Screen aspect ratio
16:9
Max. brightness (cd/m²)
450
Viewing angles (h/v; °)
178/178
Connectors
1 x BNC (Composite)
1 x DisplayPort (Input)
1 x Ethernet (RJ45)
1 x HDMI (Input)
1 x VGA (Input, 15-pin D-Sub)
2 x 3.5mm jack (Audio input/output)
2 x DVI-D (Input/output, 24+1-pin D-Sub)
2 x RS-232C (Input/output, 9-pin D-Sub)
2 x Remote (Input/output, 3.5mm jack)
OPS slot
Max. power consumption (W)
61
Width without stand (mm)
769
Height without stand (mm)
464
Depth without stand (mm)
76
Net weight (kg)
13
Set contains
Power cord
Remote control

Product description

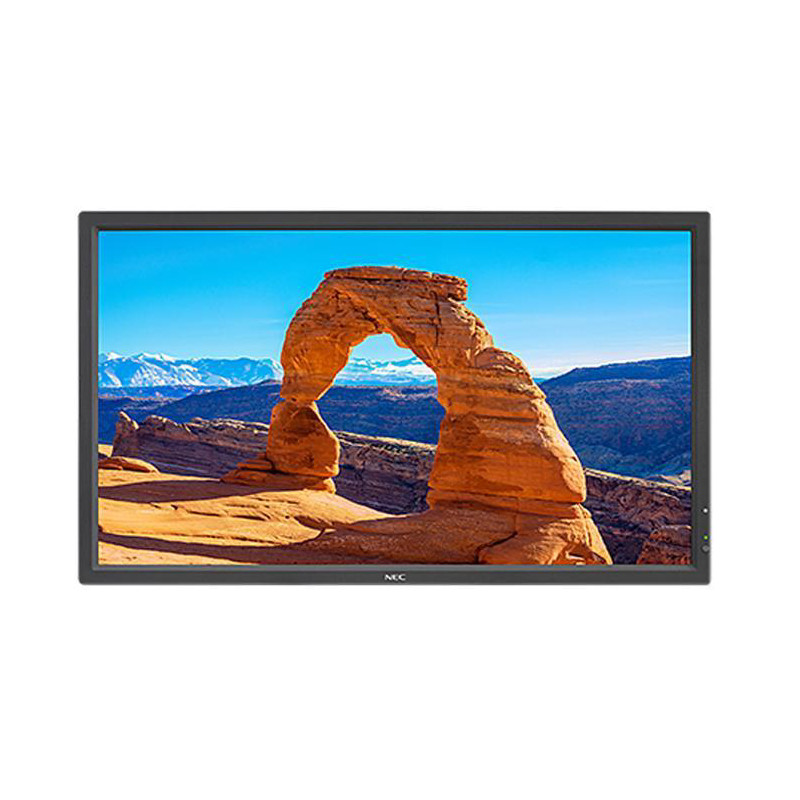

SQM Multimedia Support proposes the NEC V323 - a 32" industrial touchscreen monitor that supports 1920x1080 Full HD resolution. Technology supports 6 points of simultaneous touch, which is characterized by extreme precision and reliability.

The V323 has a great S-IPS panel (with LED backlight) that offers vivid, natural colors with a wide viewing angle and brightness of 450 nits. The monitor contains one HDMI 1.3, DVI-D and DisplayPort input, and the OPS slot which allows for easy connection with slot-in computers.

NEC V323 is a great solution for digital signage in commerce or in conference rooms. The device is equipped with a Vesa mount (200x200mm), so you can easily place it on the wall.

Attachments

NEC V323 Specsheet

Download (340.13k)
