Technical parameters
- Category
- Splitter
- Max. resolution (px×px)
- 4096x2160
- Connectors
- 1 x HDMI (Input)
4 x HDMI (Output) - Width (mm)
- 156
- Height (mm)
- 16.5
- Depth (mm)
- 80.5
- Net weight (kg)
- 0.196
Product description

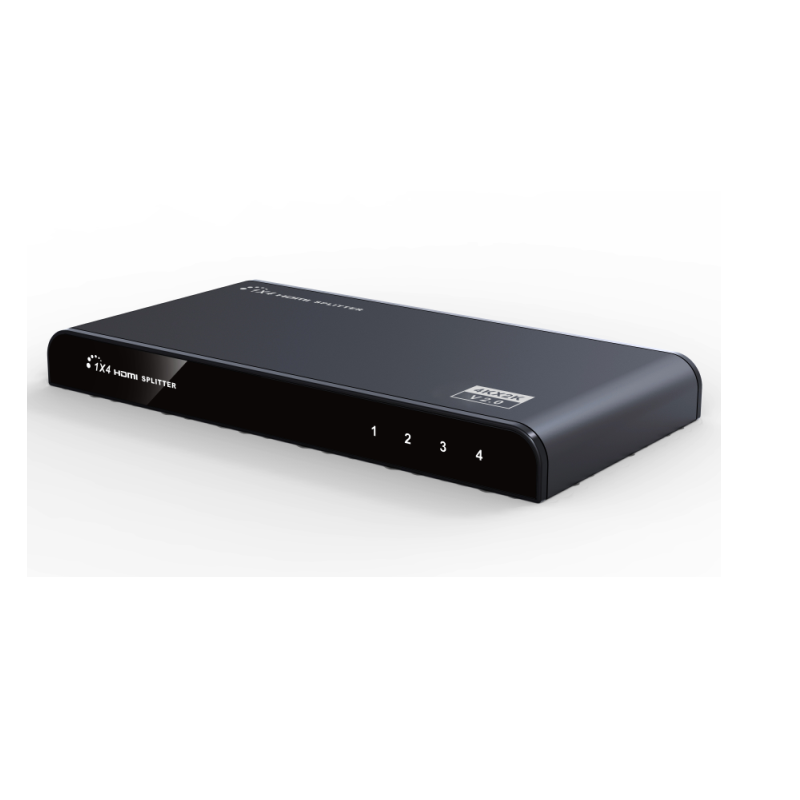

Lenkeng LKV-314E is an HDMI signal splitter that simultaneously splits the signal from 1 input into 4 outputs (compatible with the HDCP standard) at a resolution of 4096 by 2160 pixels. The splitter's frequency range is from 25 to 340MHz.
The device also supports resolutions from 480p at 60Hz, through 1080p at 24Hz in 3D. 12-bit color depth for Full HD resolution, 3D image and 4Kx2K is also supported. Lenkeng LKV-314E supports DSD and HD (High Bit Rate) audio standards.
The maximum transmission speed is equal to 10.2Gbps. Weighing less than 200g, the splitter consumes no more than 10 watts of power. We encourage you to check the availability of the 4K LKV-314E splitter at SQM Rental House!
