Technical parameters

Pixel pitch (mm)
2.6
Technology
SMD2121
Cabinet width (mm)
500
Cabinet height (mm)
500
Cabinet depth (mm)
90.6
Convex angle of cabinets connection (°)
5
Concave angle of cabinets connection (°)
10
Resolution (px×px)
192x192
Max. brightness (cd/m²)
1000
Viewing angles (h/v; °)
140/120
Refresh Rate (Hz)
2880
Protection Level (IP)
IP30
Working Environment
indoor
Max. power consumption per cabinet (W)
120
Net weight (kg)
9

Product description

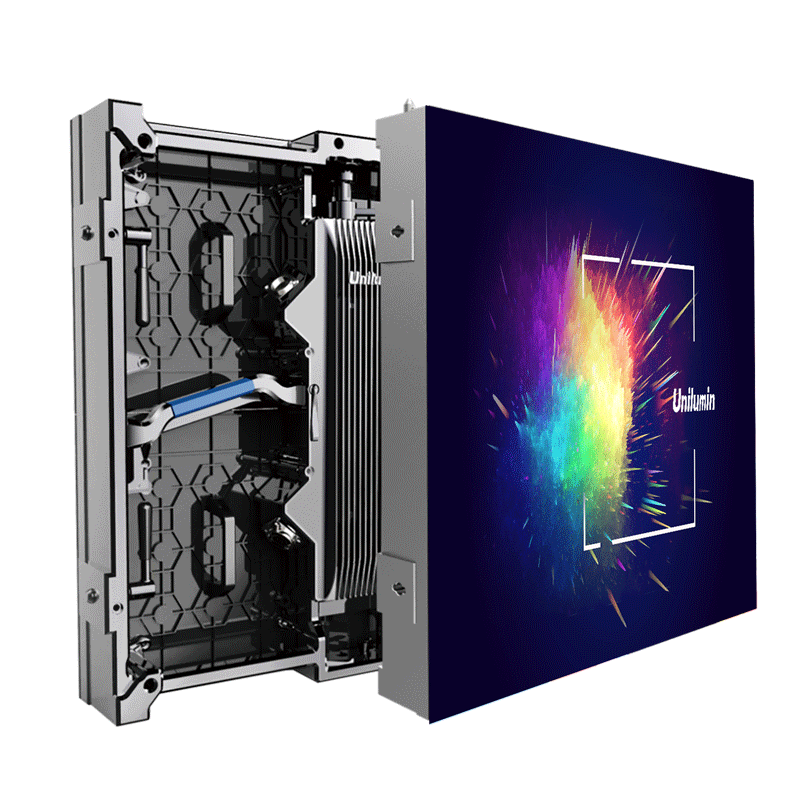

SQM Rental House offers UpadIII - an LED screen by Unilumin with a fantastic, small pixel pitch (2.6mm) and LED diodes mounted in SMD technology (2.1x2.1mm).

The cabinet is easy to install and maintain - all thanks to its modular design and serviceability from the rear. UpadIII is also adapted to create extremely interesting shapes and configurations. Thanks to the concave cabinet's merging from 0 to 10 degrees and the convex from 0 to 5 degrees, the user can create great, effective wavy shapes.

Unilumin UpadIII was designed for indoor presentations. The ability to adjust the color temperature from 2000 to 9300K allows you always to choose the right color intensity for the actual environment. The 192x192 resolution guarantees phenomenal image quality, and the brightness of 1000 nits, as well as the 140-degree horizontal and 120-degree horizontal viewing angle, will ensure that the perfectly visible image will delight all participants of fairs or conferences.
