Technical parameters

Category
Desktop
Chipset
Intel® Q85
Processor
3.4GHz Intel Core i7-4770
Operating system
N/A
Memory
4 DIMM slots; DDR3; 1600MHz; 8GB RAM
Storage
2.5" 250GB SSD
Graphics
NVIDIA GeForce GTX 760
Graphics card connectors
1 x DVI-D (Output, 24+1-pin D-Sub)
1 x DVI-I (Output, 24+5-pin D-Sub)
1 x DisplayPort (Output)
1 x HDMI (Output)
Connectors
1 x 3.5mm jack (Phones output)
1 x Ethernet (RJ45)
1 x RS232 (9-pin D-Sub)
1 x VGA (Output, 15-pin D-Sub)
2 x 3.5mm jack (Audio input/output)
2 x 3.5mm jack (Mic input)
2 x DisplayPort (Output)
4 x USB-A 2.0
4 x USB-A 3.0
Width (mm)
414
Height (mm)
175.3
Depth (mm)
442
Net weight (kg)
11.2
Set contains
Logitech MK235 wireless keyboard and mouse
Power cord

Product description

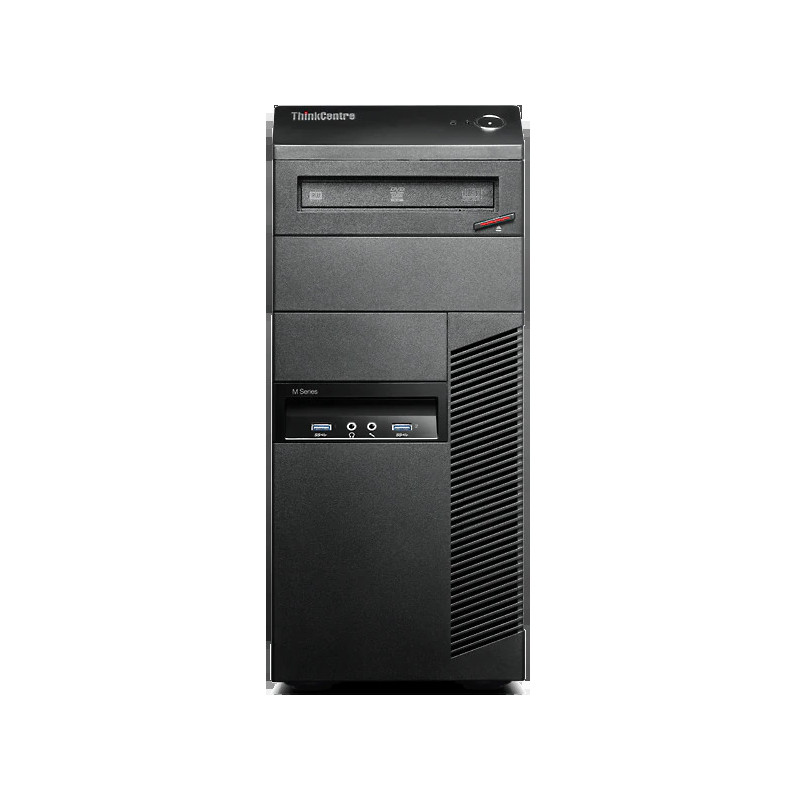

ThinkCentre M83 is a Lenovo Mini Tower desktop computer equipped with an i7 processor, a great GPU, and a powerful SSD flash disk. Desktop impresses with both its parameters, as well as energy efficiency and unique design.

This version of M83 has 8GB of DDR3 RAM. It also uses a quad-core Intel Core i7-4770 processor, which features rapid response time, 3.4GHz of frequency and exceptional performance when handling advanced graphics and computational tasks. Thanks to Intel Turbo Boost 2.0 technology, it is possible to increase processor performance by speeding up the frequency from 3.4 to 3.9 GHz, and thanks to the Intel Hyper-Threading function, eight threads are supported through four cores.

M83 Mini Tower ensures smooth operation, even during the most demanding applications, thanks to the NVIDIA GeForce GTX 760 graphics card. Thanks to the high clock frequency, the unit gains a definite advantage in terms of performance.

All necessary data, multimedia or software are available at your fingertips. The 250GB SSD flash drive provides great speed.
The front panel of the M83 is equipped with a microphone input, headphone output, as well as two USB 3.0 ports. On the back panel, the user has access to i.a. the Ethernet port, two DisplayPort connectors, six USB Type-A ports (including two 3.0), and VGA output.

The optimal dimensions of Lenovo ThinkCentre M83 and a weight of approx. 11kg makes it perfectly fits into any room - SQM Multimedia Support encourages you to rent a powerful workstation!

Attachments

Lenovo M83 User manual

Download (8.24M)
