Technical parameters
- Pixel pitch (mm)
- 2.84
- Technology
- SMD2121
- Cabinet width (mm)
- 500
- Cabinet height (mm)
- 500
- Cabinet depth (mm)
- 75
- Convex angle of cabinets connection (°)
- 20
- Concave angle of cabinets connection (°)
- 30
- Resolution (px×px)
- 176x176
- Max. brightness (cd/m²)
- 1200
- Viewing angles (h/v; °)
- 140/140
- Refresh Rate (Hz)
- 3840
- Protection Level (IP)
- IP20
- Working Environment
- indoor
- Max. power consumption per cabinet (W)
- 368
- Net weight (kg)
- 8.5
Product description

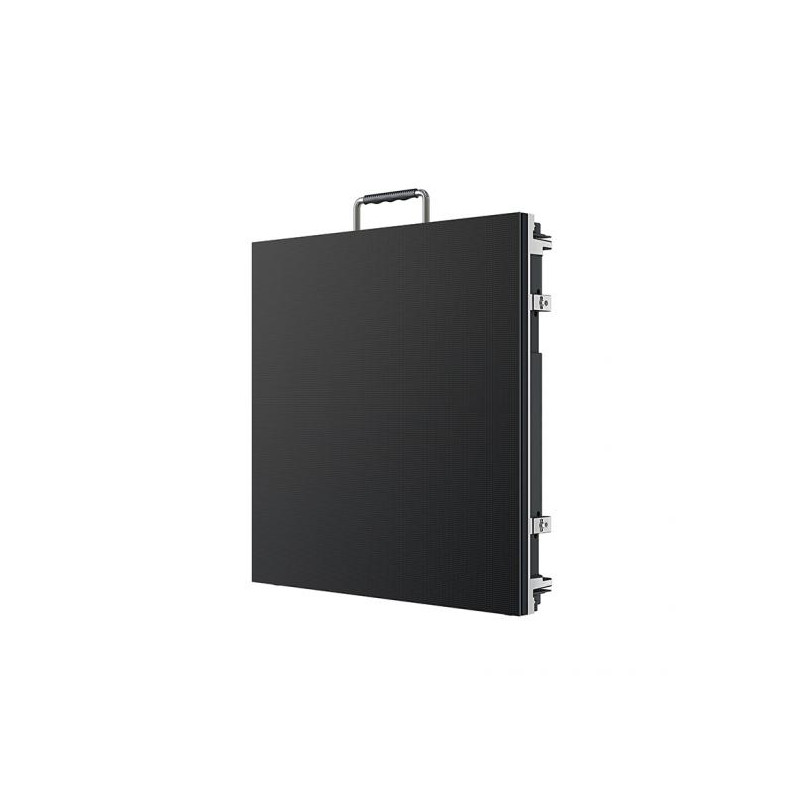

Dazzle III is a fantastic ESDLUMEN LED screen, which is distinguished by a pixel pitch of 2.84 millimeters and the use of SMD technology (2.1x2.1mm). Dazzle III is adapted for indoor projections, where it guarantees great image quality and uniformity of a presentation.
The cabinet consists of four submodules with a resolution of 88x88px, creating a general native resolution of 176x176px. The maximum brightness of 1,200 nits and 140 degrees of horizontal and vertical viewing angle cause that the Dazzle III will delight with the quality of the presented image.
Thanks to the possibility of combining screens with a 20-degree convex or 30-degree concave curvature, the user can create fantastic, unusual shapes - from wave shape to cubes (using the ESDLUMEN corner) and many other arrangements.
The cabinet weighs 9.6kg and does not cause any installation problems due to its modularity. It is the perfect choice when organizing trade fairs or multimedia conferences.
