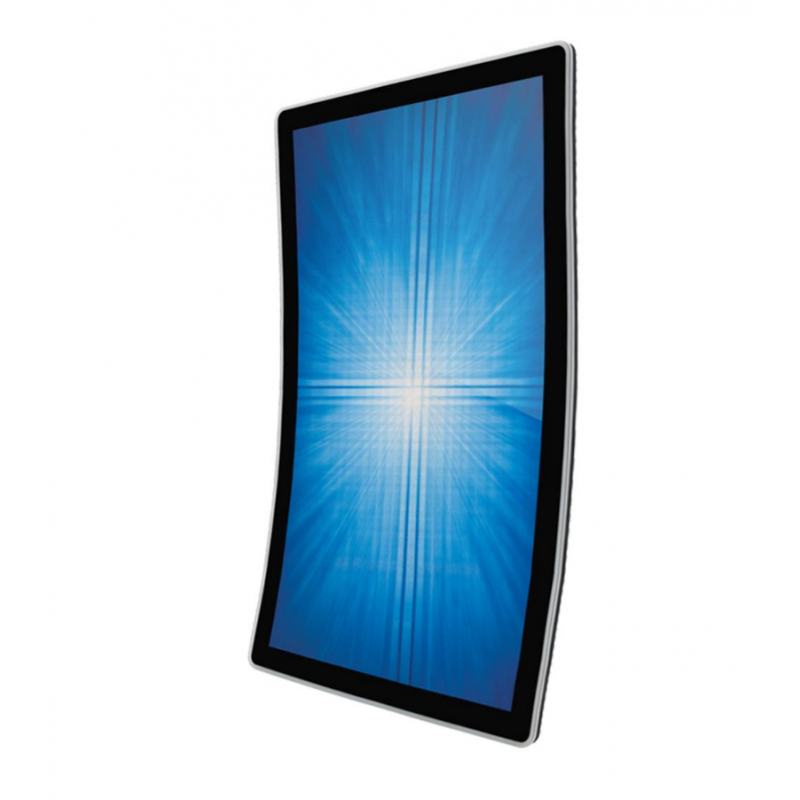

J-SHAPE CURVED TOUCH SCREEN / 10 POINT / 49"

GO TO INQUIRY

Technical parameters

Diagonal (in)
49
Panel
LCD
Resolution (px×px)
3840x2160
Width of viewable area (mm)
1061.9
Height of viewable area (mm)
604.0
Touch points
10
Touch screen type
PCAP (Projected Capacitive)
Typical brightness (nits)
380 (TouchPro PCAP)
450 (LCD Panel)
Contrast ratio
1300:1
Viewing angles (h/v; °)
89/89
Screen aspect ratio
16:9
Curvature (R)
1500
Typical power consumption (W)
80.8
Width without stand (mm)
1142.38
Height without stand (mm)
675.60
Depth without stand (mm)
179.46
IP Grade
IP65
Net weight (kg)
21
Connectors
1 x DisplayPort
1 x HDMI 1.3
Set contains
Power cord
Remote control

Product description

J-Shape Curved Touch Screen is a 49-inch curved touchscreen with a native resolution of 3840 × 2160 px (4K UHD), designed for eye-catching interactive installations, events, presentations, and Digital Signage applications. The screen’s distinctive curved surface, with an R1500 radius, gives displayed content a modern, immersive feel and helps installations stand out from standard flat displays.

The screen features PCAP capacitive touch technology with support for up to 10 touch points, providing smooth and intuitive control of interactive content. The front of the screen is rated IP65 and offers IK07 impact resistance, making the J-Shape Curved Touch Screen well suited to demanding event and exhibition environments.

Another distinctive feature of the J-Shape display is the front-facing RGB LED strip with customisable colour options. This allows the appearance of the screen to be matched to the character of the event, stage design, or visual identity.

Thanks to its curved design, the J-Shape screen can also be used as part of larger, more elaborate installations. Combining two J-SHAPE screens creates an even more striking visual installation while expanding the available display area for interactive content.

Rent the J-Shape Curved Touch Screen from SQM Rental House and create an eye-catching, interactive installation for your next event!
