Technical parameters
- Color
- Black
- Power (W)
- 80 W max., 40 W RMS
- Material
- ABS (UV resistance)
Aluminium mesh grille, with powder-coated finish
Stainless steel screws
Weather-resistant mount - Impedance (Ω)
- 2'5 W RMS@70 V (1.960 Ω)
5 W RMS@100 V/70 V (2.000 Ω/980 Ω)
10 W RMS@100 V/70 V (1.000 Ω/490 Ω)
20 W RMS@100 V/70 V (500 Ω/245 Ω)
40 W RMS@100 V (250 Ω)
Low Z: 8 Ω - Sensitivity
- 88.3 dB @ 1 W/1 m
- Connectors
- Euroblock in and out for cable 0.25 - 2.5 mm² cross section
- Dimensions
- Loudspeaker: 162 x 263 x 147 mm depth
Loudspeaker with mount: 216 mm depth
Mount wall plate: 68 x 110 mm - Weight
- 2.2 kg
- Speaker
- 1 x 1" tweeter
1 x 5 ¼" polypropylene woofer - Features
- Low impedance loudspeaker with 100 V line transformer.
Suitable for outdoor use, waterproof and rustproof materials. - Maximum Sound Pressure
- 102.2 dB @ máx. W/1 m
- Coverage Angle
- 135º H x 135º V @1kHz (-6 dB)
- Protections
- IEC 60068-2-11 Enviromental Test (Salt mist)
IP-66 in compliance with EN 60529 - Temperature Range
- -10ºC ~ 60ºC
- Accessories
- Adjustable mounting bracket ± 60º in all directions.
Steel safety cable.
Product description

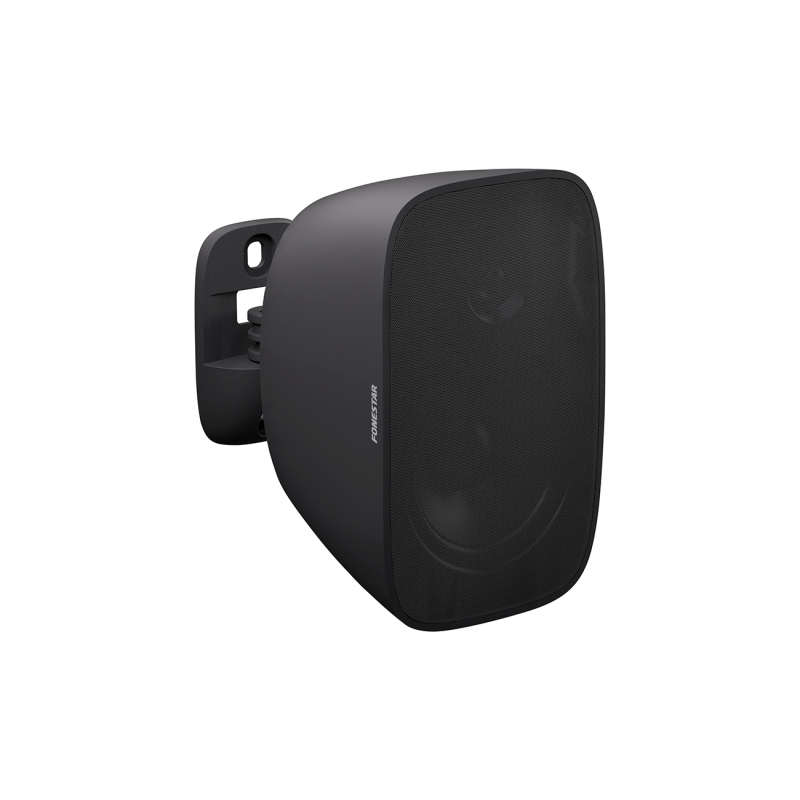

The FONESTAR SONORA-5TB is a versatile installation loudspeaker designed for both 100 V line systems and low-impedance (8 Ω) applications. It features a 5¼-inch polypropylene woofer and a 1-inch tweeter, delivering clear, balanced, and distortion-free sound.
The SONORA series has been developed based on FONESTAR’s experience in professional audio, offering reliable solutions for public address and background music systems. Its elegant design allows easy integration into a wide range of indoor and outdoor spaces.
Built for durability, the SONORA-5TB is suitable for outdoor use thanks to its IP66-rated weatherproof construction, UV-resistant ABS enclosure, and powder-coated aluminium grille. It is also resistant to harsh environmental conditions, including humidity and salt exposure.
Installation is quick and convenient with the included adjustable mounting bracket (±60°), stainless steel hardware, and safety cable. The speaker is equipped with Euroblock connectors and a power selector for high and low impedance operation.
Rent the SONORA-5TB loudspeaker at SQM Rental House!
