Technical parameters

Net weight (kg)
129
Max. height (mm)
6500
Max. load (kg)
300
Safety
ALS (Automatic Lock System)
Work surface (mm)
2300 x 2300
Folded height (mm)
1870
Winch (kg)
900
Adaptor
truss 290 - truss 390
Min. load (kg)
25

Product description

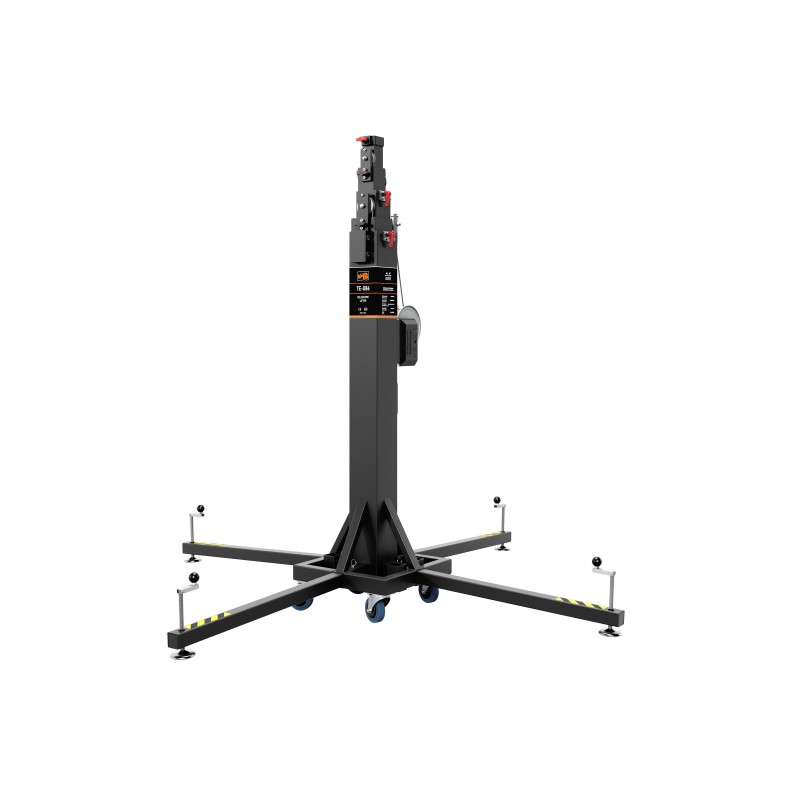

VMB TE-086 is a professional manual telescopic tower designed for lifting heavier stage, lighting, structural, and AV equipment. The model offers a lifting capacity of up to 300 kg and a maximum working height of approximately 6.5 m, making it ideal for events, trade shows, concerts, and temporary installations.

The high-quality aluminium construction combines excellent load capacity with mobility and ease of use on-site. The tower is equipped with the ALS – Automatic Lock Security system, which automatically locks the mast sections during lifting, increasing user safety and overall stability. In addition, it complies with the strict German BGV C1 safety standards.

The TE-086 features a robust winch, steel cable, and a wide working base, allowing safe handling of heavy loads. When folded, the unit maintains compact transport dimensions, making storage and logistics easier.
