Technical parameters
- Operating Modes:
- Switcher / PGM only
- 4K Inputs/Outputs
- HDMI 2.0, DP 1.2, 12G-SDI
- Inputs
- 8 x DP 1.2/HDMI 2.0, 4 x 12G-SDI inputs
- Outputs
- 8 x HDMI 2.0, 4 x 12G-SDI
- Output Resolution
- up to 2 x 4K × 2K @ 60 Hz in switcher mode; in PGM only mode, output resolution per P20-DS up to 8K × 4K @ 60 Hz
- AUX Outputs
- allow connection of auxiliary devices, such as teleprompters
- Dedicated Multiviewer Output
- allows monitoring of PGM & PVW screens and all connected sources from a single display
- 2 x Gigabit Ethernet Ports
- used for control and monitoring
- Number of DL Layers
- up to 12 layers (2 × MAIN + 10 × PIP) or 8 layers (4 × MAIN + 4 × PIP)
- Number of Presets
- up to 128
- Supported Video Sources
- 8 bit, 10 bit, 12 bit
- Advanced DSK Capability
- chroma key, luma key
Product description

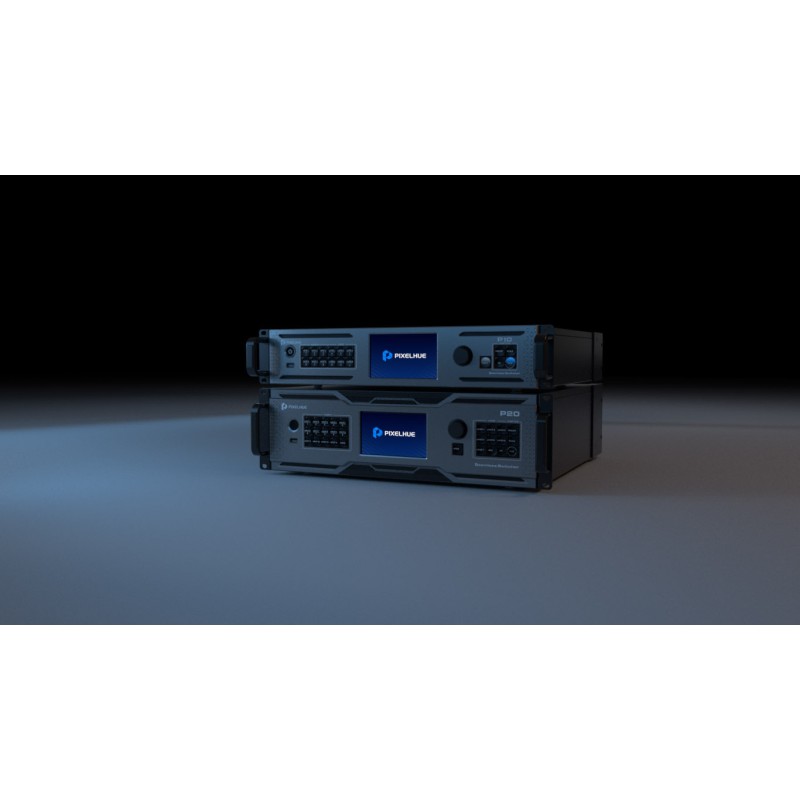

Pixelhue P20-DS is a powerful 4K/8K presentation switcher designed for live events and fixed installations. It delivers true 4K 60p 4:4:4 10-bit processing, smooth transitions, HDR support, and flexible multi-layer layouts. With HDMI 2.0, DP 1.2, 12G-SDI, and 10G fiber ports, it ensures maximum compatibility and long-distance transmission up to 10 km without converters.
