Technical parameters
- Pixel pitch (mm)
- 1.9
- Cabinet width (mm)
- 496
- Cabinet height (mm)
- 496
- Cabinet depth (mm)
- 61
- Resolution (px×px)
- 256x256
- Max. brightness (cd/m²)
- 800
- Refresh Rate (Hz)
- 3840
- Curvature (°)
- 45
- Protection Level (IP)
- Front: IP40
Rear: IP21 - Net weight (kg)
- 8.5
- MAX./AVG POWER CONSUMPTION (W)
- 413/137
- Gray scale (Bit)
- 14
Product description

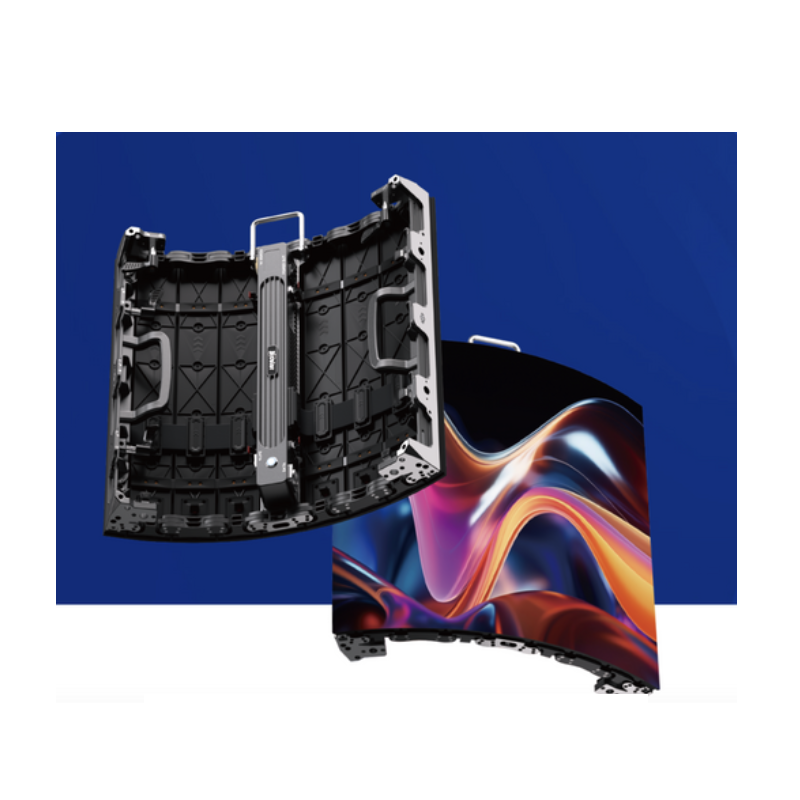

The Dicolor US-191E is a high-resolution LED screen with a 1.9375 mm pixel pitch, ideal for close-range indoor applications such as corporate events, creative installations, and media-rich productions.
Its 496 × 496 × 61 mm cabinet offers a crisp 256×256 resolution while maintaining a lightweight 8.5 kg profile for easy setup and transport. With a refresh rate of ≥3840 Hz and 14-bit grayscale, the US-191E delivers smooth, detailed visuals even in dynamic scenes.
The panel supports ±45° curving, allowing for flexible configurations like arches or wraparound displays. Its 800 nit brightness and IP40/IP21 rating make it well-suited for controlled indoor environments.
Energy-efficient with a max power draw of 413 W/m², the US-191E is a smart solution for creative and technical teams seeking precision and adaptability.
