P2.9 Outdoor Yestech

LOG IN or REGISTER,
to see price.

Technical parameters

Pixel pitch (mm)
2.9
Control system
Nova
Module Resolution (WxH)
84 x 84
Module size (mm)
250 x 250
Module Quantity per Cabinet (WxH)
2 x 2
Cabinet Resolution (WxH)
168 x 168
Cabinet size (mm)
500 x 500 x 71
Cabinet Area (m2)
0.25
Weight (kg/Cabinet)
6.3
Pixel Density (dot/m2)
112896
IP Grade
Front IP65 | Rear IP54
White Balance Brightness (nit)
3500-3800
Horizontal/Vertical Viewing Angle ( ° )
160/160
Contrast Ratio Uniformity
10800:1
Power Consumption (W/m²)
700+̲15%/235+̲15%
Working Voltage
AC100~240V
Framge Frequency (Hz)
50/60
Product Certification
CE,FCC,ETL

Product description

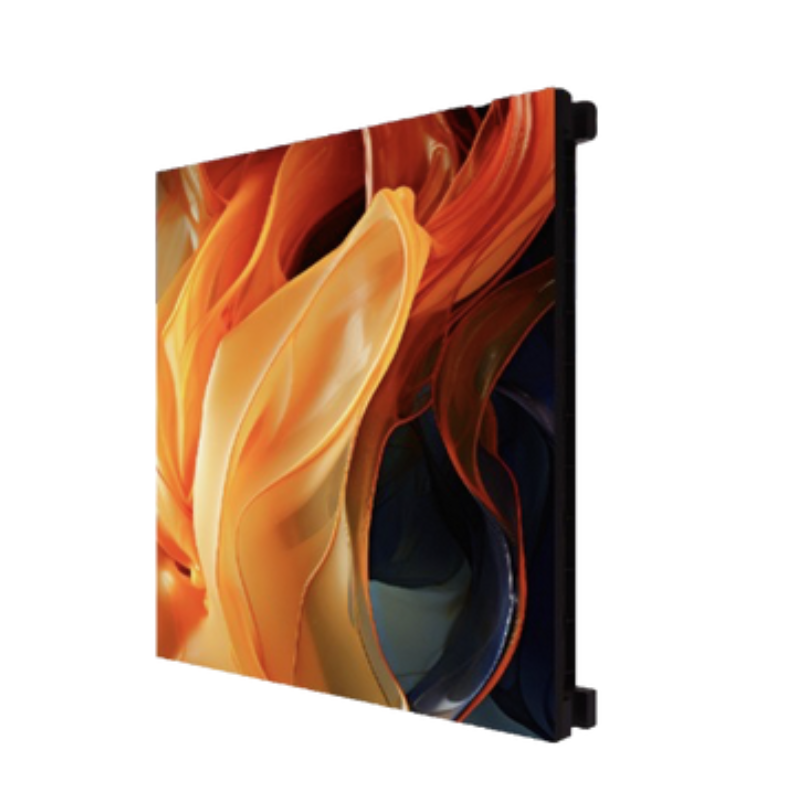

The Yestech P2.9 Outdoor is a high-brightness LED screen with a 2.9 mm pixel pitch, designed for professional outdoor applications such as events, exhibitions, and live shows. Each cabinet features a resolution of 168×168 pixels, built from 4 modules (250×250 mm each), and weighs only 6.3 kg — making it lightweight and easy to handle.

With brightness options up to 4500 nits and a wide 160° viewing angle, it ensures excellent visibility in all lighting conditions. High contrast (up to 10800:1) and dense pixel layout (112,896 dots/m²) guarantee vivid, detailed image reproduction. Thanks to its modular design and energy efficiency, the P2.9 is ideal for both rental and fixed outdoor installations.
