Technical parameters
- Pixel pitch (mm)
- 1.9
- Cabinet width (mm)
- 500
- Cabinet height (mm)
- 500
- Cabinet depth (mm)
- 72
- Resolution (px×px)
- 256x256
- Max. brightness (cd/m²)
- 1000
- Viewing angles (h/v; °)
- 160/160
- Refresh Rate (Hz)
- 7,680
- Protection Level (IP)
- IP30
- Working Environment
- indoor
- Maintenance
- Front / Rear
- Net weight (kg)
- 6.3
- Max./Avg Power Consumption (W)
- 130/45
- LED type
- U shield 1515
- Curve
- (Convex) 5°~+10°(Concave) (Optional)
Product description

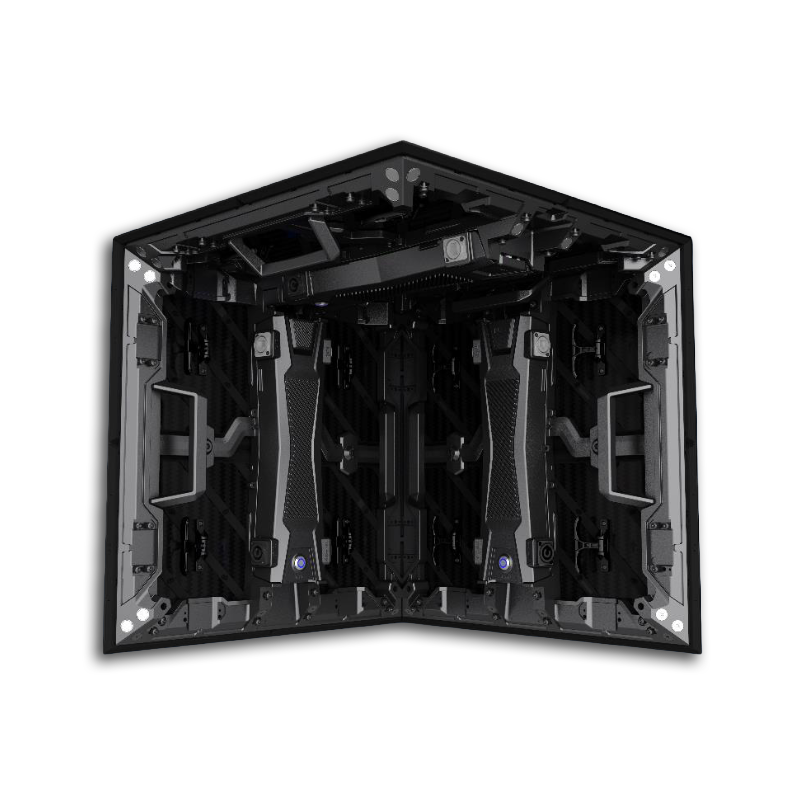

The Unilumin UPAD IV Pro C-CUBE U-Shield P1.9 is a highly versatile premium LED panel engineered specifically for building seamless 90° corners and three-dimensional LED cubes. Utilising a standard 500x500mm cabinet size, the C-CUBE U-Shield module integrates flawlessly both horizontally and vertically with the standard UPAD IV Pro U-Shield and the flexible UPAD IV S-FLEX U-Shield panels. This cross-compatibility allows you to break away from flat screens and design immersive, multi-dimensional installations that elevate any stage or exhibition space.
Featuring Unilumin’s U-Shield technology, the UPAD IV Pro C-CUBE delivers rugged durability and a matte, reflection-free surface that resists damage during frequent load-ins. At just 6.3 kg, the die-cast magnesium cabinet is roughly 30% lighter than standard rental panels, drastically reducing rigging strain and accelerating installation times for the installation crew.
Equipped with a fine 1.9 mm pixel pitch and 1,000 nits of brightness, the the Unilumin UPAD IV Pro U-Shield line is engineered to provide stunning, high-end displays. Powered by NovaStar A10 receiving cards and a massive 7,680 Hz refresh rate, the system produces a remarkably crisp, flicker-free canvas that brings vivid colours and flawless HDR performance to your custom geometric layouts.
