Technical parameters

Video processing
Y:Pb:Pr; 4:2:2; 8-bit
Supported video formats
1080@59.94i; 1080@50i; 1080@59.94p; 1080@50p; 720@59.94p; 720@50p
Transition effects
Cut; Mix (Dissolve/Fam/Nam/Mosaic); Wipe (30 types); Transformer (11 types)
Other effects
Negative; Emboss; Colorize; Colorpass; Posterize; Silhouette; Monocolor; Findedge; Flip
Audio effects
EQ; Delay; Compressor; HPF; Gate; Reverb; Mastering
Connectors
1 x 3.5mm jack (Mic input)
1 x 3.5mm jack (Phones output)
1 x HDMI (Output)
1 x HDMI (Preview)
1 x USB-B
2 x MIDI (Input/output/thru, 5-pin DIN)
2 x RCA (Audio input)
2 x RCA (Audio output)
4 x HDMI (Input)
Max. power consumption (W)
18
Power supply
AC adaptor
Width (mm)
313
Height (mm)
59
Depth (mm)
102
Net weight (kg)
1.2
Set contains
Power supply

Product description

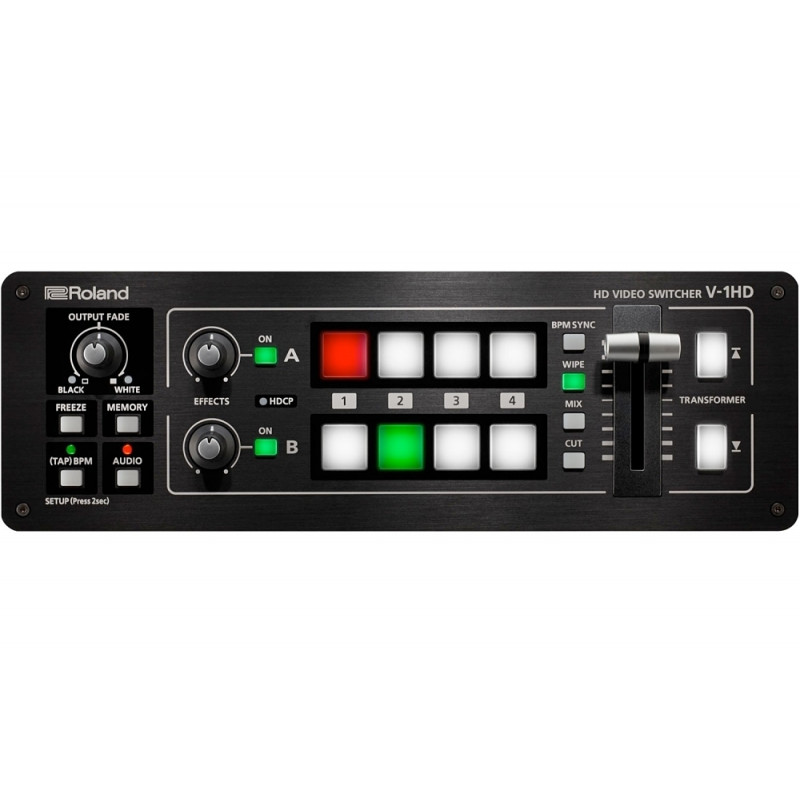

Roland V-1HD is a professional signal switcher that supports Full HD 1080p, which is ideally suited as a miniature production studio for a mass event organization.

The mixer offers four HDMI inputs that process audio/video signals from many mobile devices, MIDI connectors, USB Type-B port, audio input/output on RCA connectors, as well as two 3.5mm jacks for connecting a microphone and headphones.

The V-1HD offers free adjustment of contrast, color and saturation parameters. It also has a rich palette of compositional effects and image maneuvering effects. The mixer also allows you to mix audio signals.

The Roland V-1HD switch recommended by SQM Rental House is a very intuitive device. In addition to the traditional method, it is also possible to control the switcher from the V-1HD Remote software on a computer.
